A painting system is composed of several integrated components, including the spray booth, air supply units, paint mixing and distribution systems, automated spraying equipment, pipelines, and control systems. Together, these elements work seamlessly to ensure precise, high-quality coating processes and efficient plant operations.
Advantages

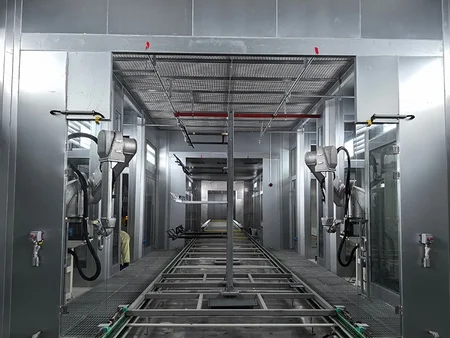

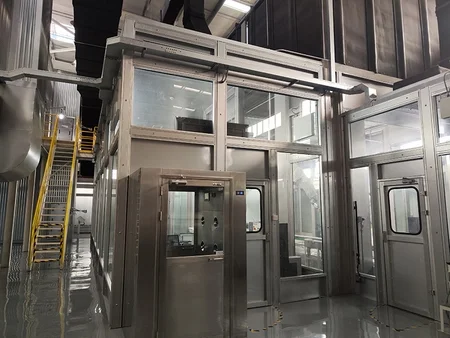

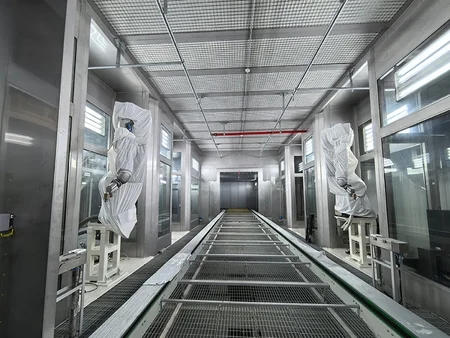

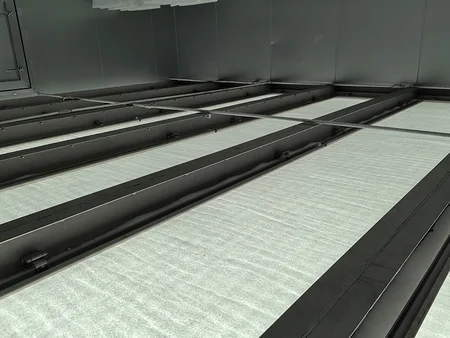

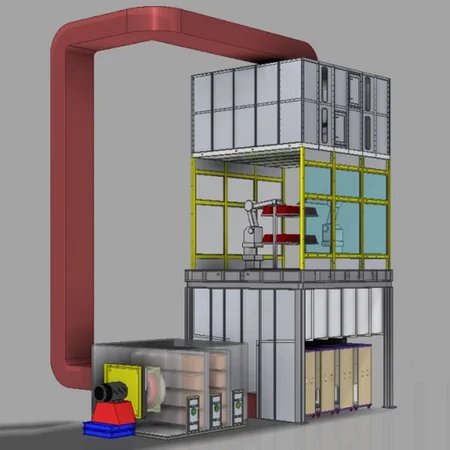

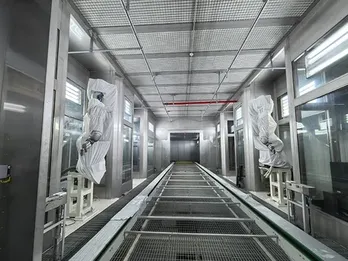

The dry filter spray booth offered by Tiancheng Coating features an overhead air supply and bottom exhaust design. Its structure includes the spray booth body, recirculating air system, filtration system, paint mist capture system (using filter cardboard boxes), and an integrated process control system.

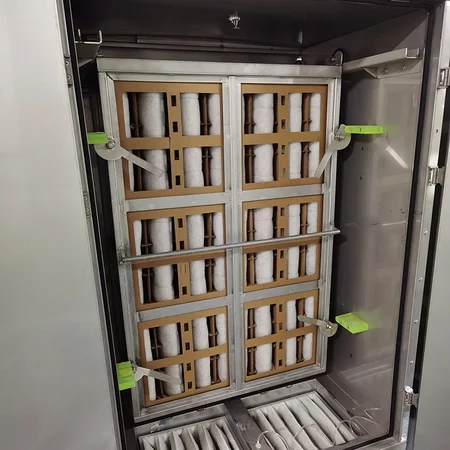

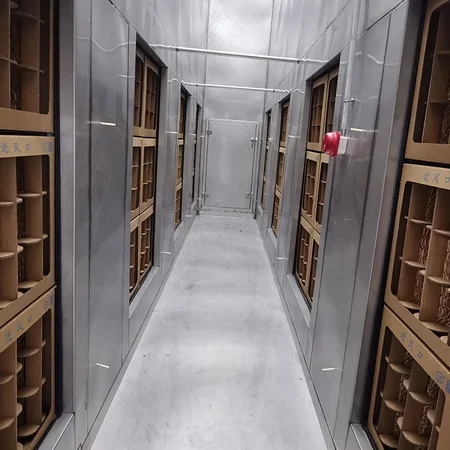

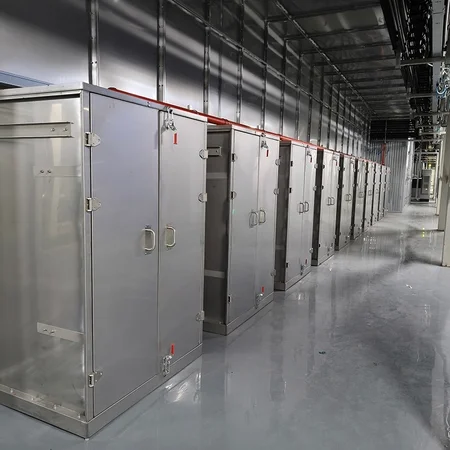

Operating Principle:The dry filter spray booth maintains balanced airflow through a recirculating ventilation system. It uses a combination of cardboard filters and bag filters to effectively capture paint particles and maintain clean air within the booth environment.

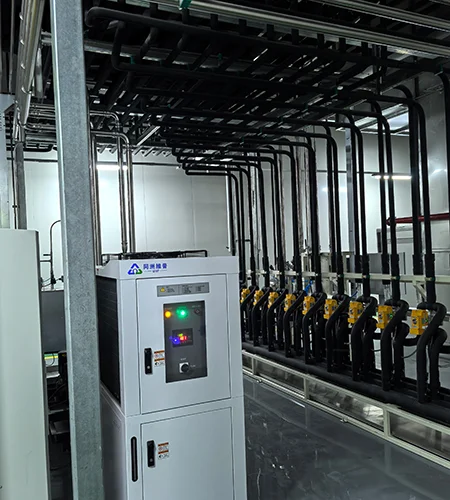

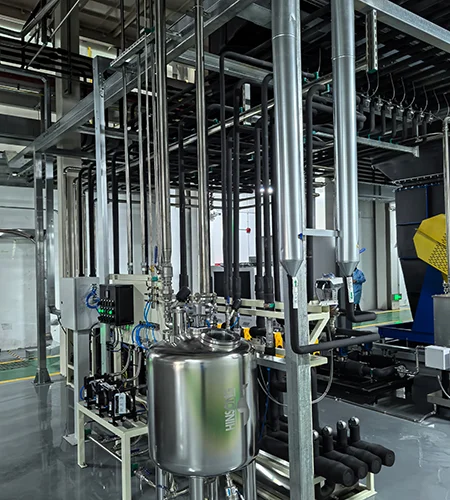

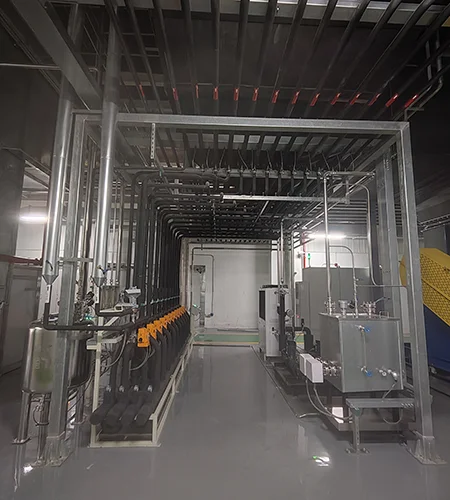

The paint mixing and distribution system is a centralized network of components and pipelines designed to deliver paint at precise pressures and flow rates while controlling critical properties like temperature.
Main components include:
The paint mixing and distribution system is a centralized network of components and pipelines designed to deliver paint at precise pressures and flow rates while controlling critical properties like temperature.
Main components include:This system ensures consistent paint quality, reduces material waste, and supports efficient, high-performance coating operations across your production line.
Our team is ready to help you achieve outstanding coating results with maximum efficiency and significant cost savings. We’d love to connect and explore how we can support your goals.

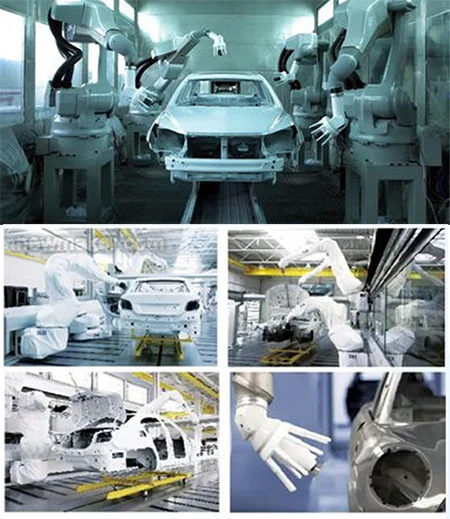

Our solutions cover every critical part of an automotive coating line, including Pretreatment and E-Coating Systems, Spray Booths, Oven&Coolers, ASU&ARU, and dedicated Working Decks.
Enhance your automotive coating line applications with solutions designed for outstanding vehicle finishes and optimal paint shop performance. Rely on Tiancheng Coating for innovative systems that deliver superior quality, efficiency, and proven results.
