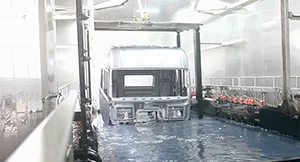

• Pretreatment and electrophoretic coating equipment
• Manual operation line equipment
• Oven&Cooler

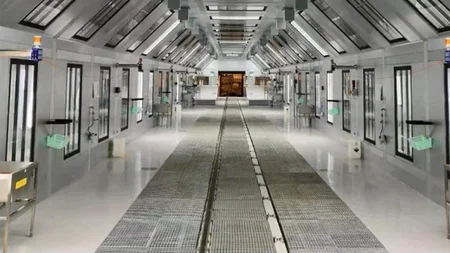

• Painting equipment

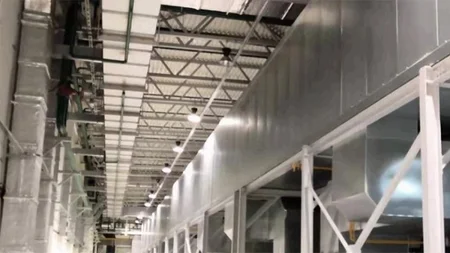

• Air supply and conditioning equipment
• RTO (Regenerative Thermal Oxidizer)
• Exhaust gas treatment equipment
• Pure water
• Anode ultrafiltration equipment
• Rectifier
• High-pressure cleaning equipment
• Polyurethane foam injection equipment
• Electrical control system equipment
• Auxiliary equipment, including fans, air shower rooms, lifting platforms, water pumps, light boxes, mobile infrared curing equipment, air filters, and more

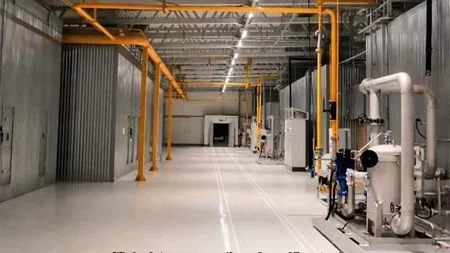

The great wall motors russia tula uzlovaya industrial park paint shop adopts a layered and categorized centralized layout, with the main plant building structured over two floors, and some sections extending to three floors.

• The project involved a total shipment of 522 containers and 33 oversized components transported via bulk carriers.
• The equipment’s net weight reached 4,541,293.57 kg, while the gross weight amounted to 5,013,894.08 kg.

The first floor primarily houses:

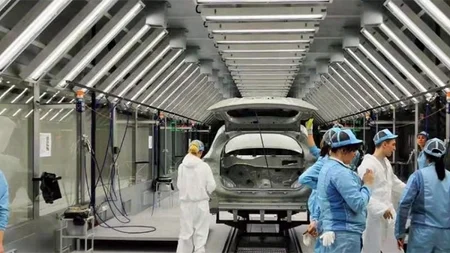

• Manual work areas

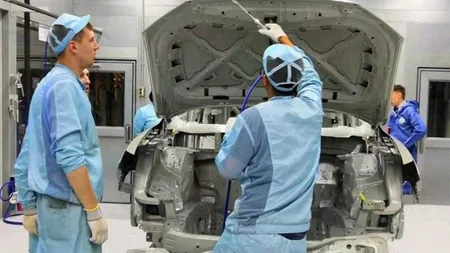

• Coarse and fine sealing rooms
• E-coat panel and fixture exchange areas
• E-coat sanding and offline sanding areas

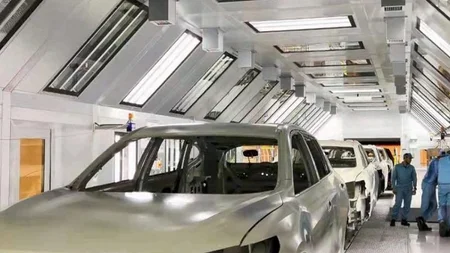

• Handover (inspection) rooms

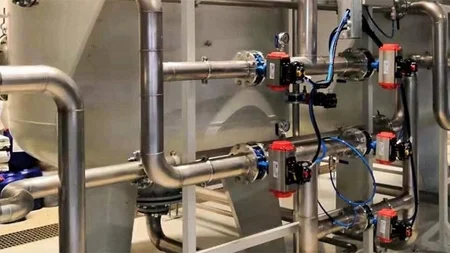

• Pure water equipment in first-floor auxiliary rooms

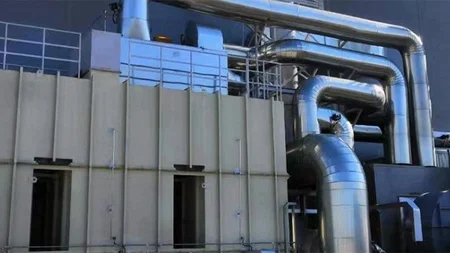

• Exhaust gas treatment equipment located on the exterior side of the first-floor paint shop
