Spray Coating Line for FAW Truck Cab
FAW Liuzhou

Truck Paint Shop

Tiancheng Coating provided design, manufacturing, installation, commissioning, production support, and delivery services for the truck cab coating workshop project at FAW Jiefang’s Liuzhou branch. The truck cab coating system integrates equipment for pretreatment and electrophoretic coating (E-coating), drying, painting, air conditioning, and conveying, and is designed to support continuous production of 12 different truck models as well as various small parts and fixtures.

  • July 2020: Arrival on-site to begin preparations for the construction of the truck cab painting workshop
  • December 2020: Start of tank installation
  • January 2021: Painting robots began operation
  • March 2021: Truck cab coating line entered small-batch trial production
  • May 2021: Automotive coating line began mass production
  • July 2021: Acceptance and sign-off of the truck cab coating production line

Production Capacity: 100,000 units/year

Process Steps

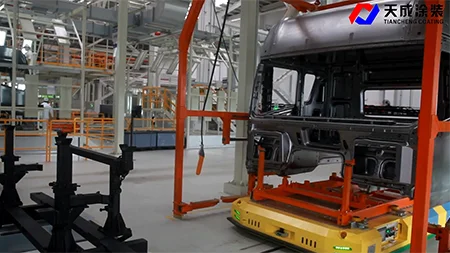

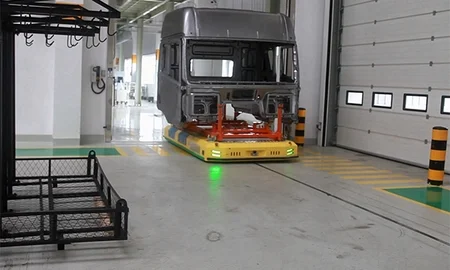

Automatic Loading of Truck Cab
Automatic Loading of Truck Cab

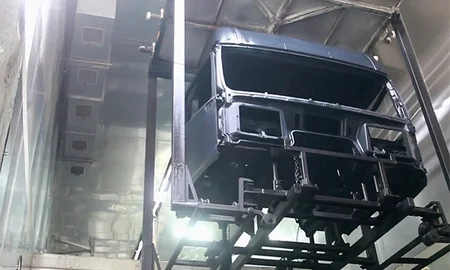

Truck Cab Moving Between E-Coat Tanks
Truck Cab Moving Between E-Coat Tanks

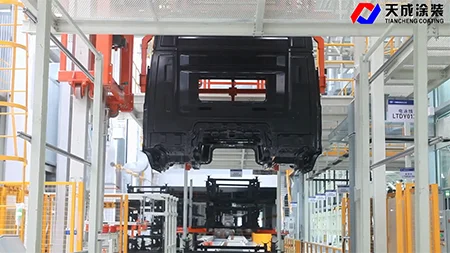

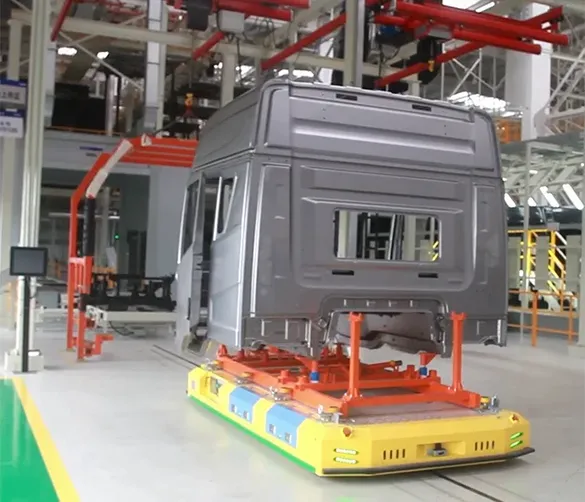

Automatic Truck Cab Transfer and Adhesive Drying
Automatic Truck Cab Transfer and Adhesive Drying

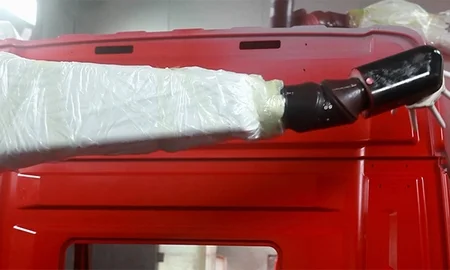

Robotic Spray Coating for Truck Cab
Robotic Spray Coating for Truck Cab

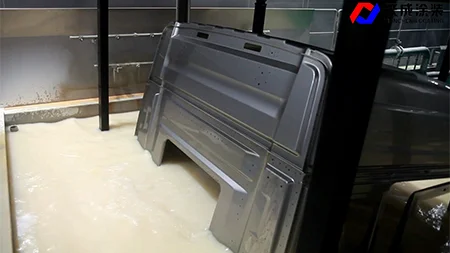

Pretreatment and E-Coating for Truck Cab Bodies Pretreatment and E-Coating for Truck Cab Bodies

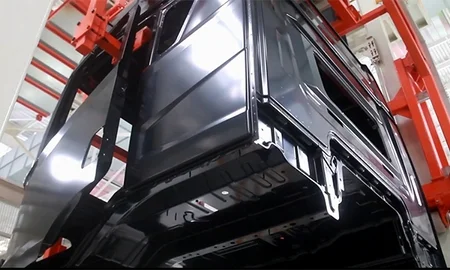

Unloading and Drying of Truck Cab Bodies Unloading and Drying of Truck Cab Bodies
PVC Fixtures PVC Fixtures

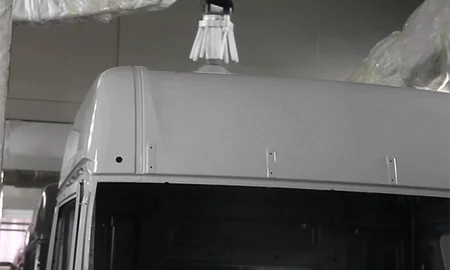

Sealant Application and PVC Adhesive Drying for Truck Cab Bodies Sealant Application and PVC Adhesive Drying for Truck Cab Bodies
Automated Spray Coating System Automated Spray Coating System

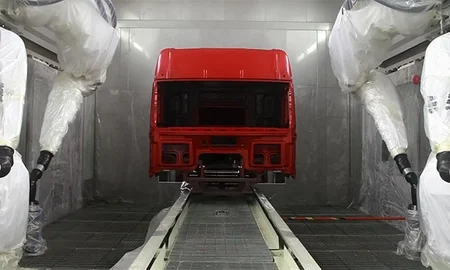

Basecoat Robotic Assisted Spraying Basecoat Robotic Assisted Spraying

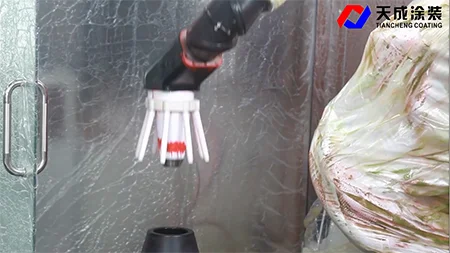

Cartridge-Type Robotic Spraying Cartridge-Type Robotic Spraying

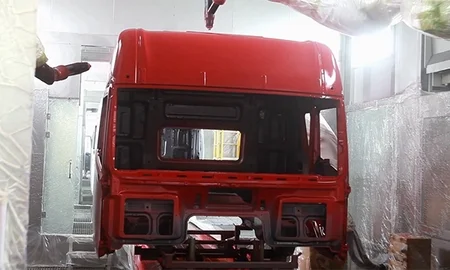

Clearcoat Robotic Spraying Clearcoat Robotic Spraying

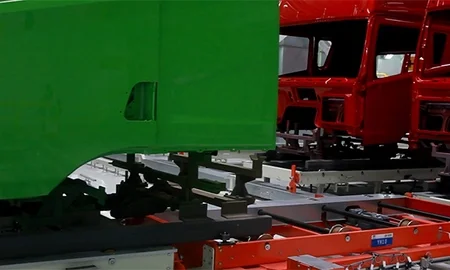

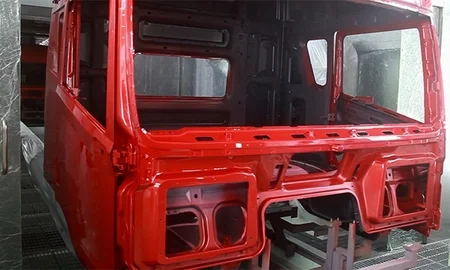

Truck Cab Paint Curing and Storage Transfer Truck Cab Paint Curing and Storage Transfer

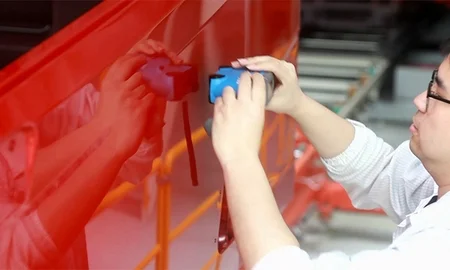

Paint Surface Inspection of the Truck Cab Paint Surface Inspection of the Truck Cab
Final Assembly of Truck Cab Final Assembly of Truck Cab
Pretreatment & E-Coating System

Automatic Coating Line

Pretreatment & E-Coating System

Drawing on deep knowledge of industrial pretreatment technologies, Tiancheng Coating offers flexible conveyor solutions to integrate seamlessly with your production flow. Depending on your processes and space constraints, you can choose from three proven conveyor options: pendulum conveyor system, electric monorail system (EMS) and programmable hoist conveyor system.

Learn More
