Great Wall Motor invested in building a manufacturing plant in Russia, where the automotive body spray coating system was fully installed, commissioned, trial-run, and supported with training by Tiancheng Coating.
Packaging and Shipping of Steel Structures

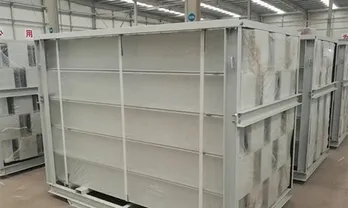

Packaging of Unit Equipment

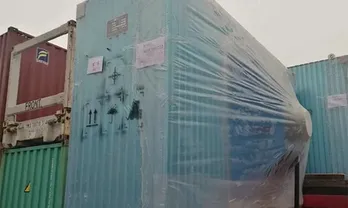

Container Loading

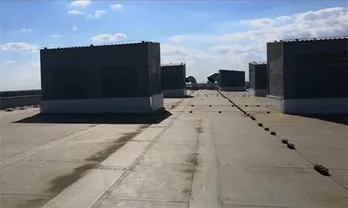

August 30, 2017: Topping-out of the paint shop building

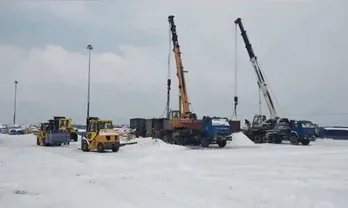

December 12, 2017: Project start, unloading the container

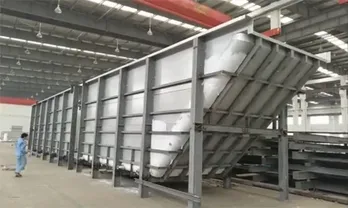

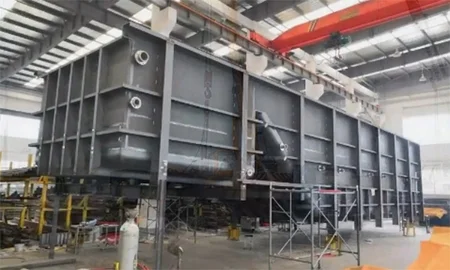

December 16, 2017: Arrival of the first pretreatment process tank on-site
March 1, 2018: Installation crew officially arrived on-site and began installation work

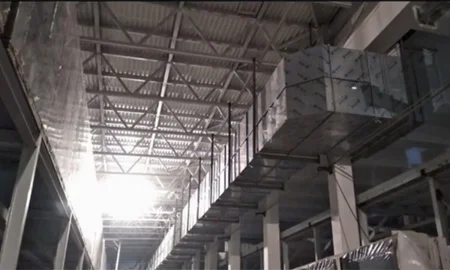

December 30, 2018: Main installation of paint shop process equipment completed

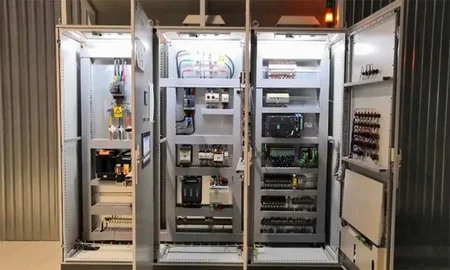

January 5, 2019: Partial energization of the paint shop began, starting commissioning work

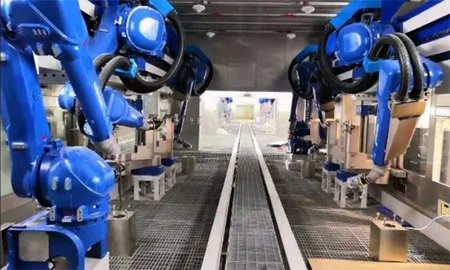

January 20, 2019: Power-up and commissioning of painting robots
Electrophoretic paint maintained under 24-hour continuous agitation

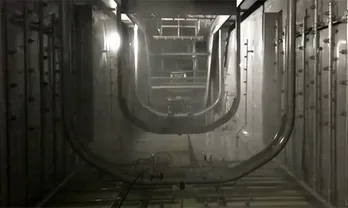

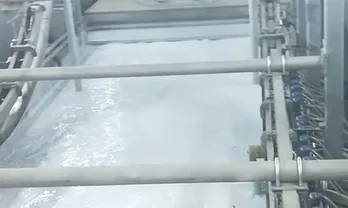

Spray Showering in the Spray Tank
Spray Rinsing After Immersion Tank Exit

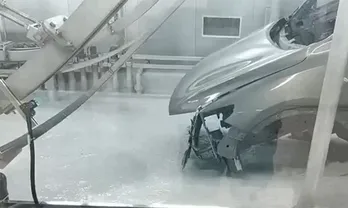

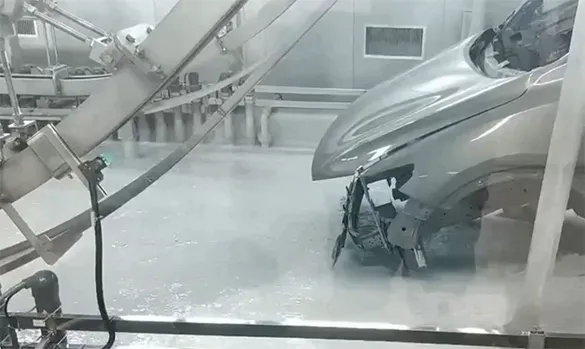

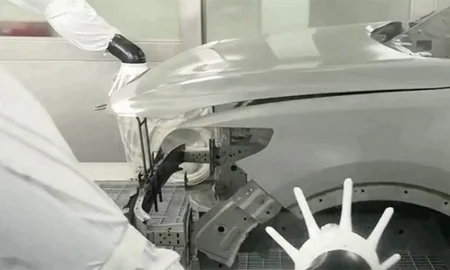

Paint Booth with Robotic Spraying
Training
Car bodies enter the electrophoretic coating tank for E-coating application

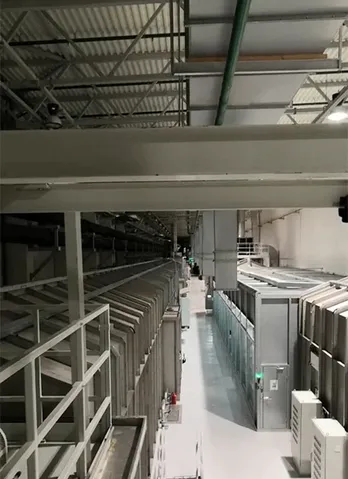

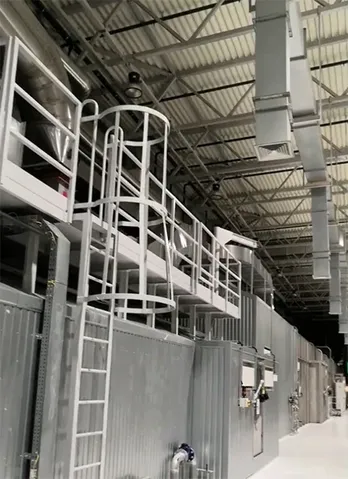

Second-Floor Steel Platform for Pretreatment and E-Coating Operations

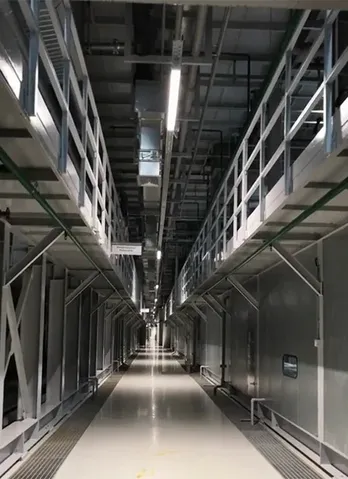

Panoramic View of the Pretreatment and E-Coating Booth Structure

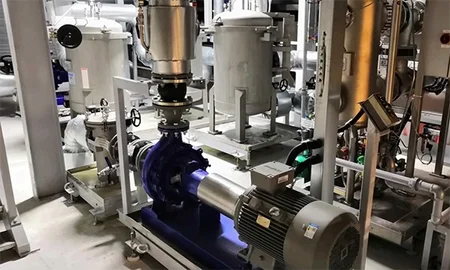

Electrolyte Pump and Valve Assembly

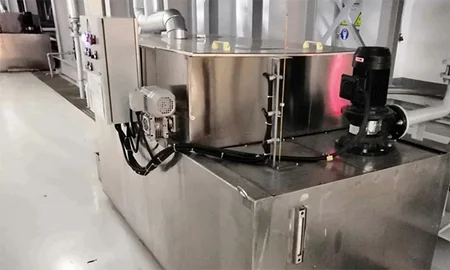

Paper Band Filtration Machine

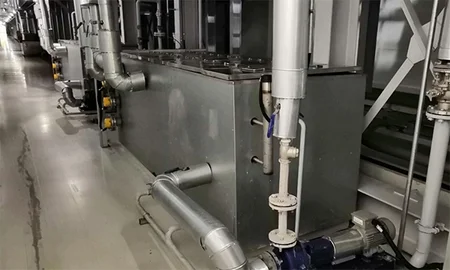

Oil-Water Separator

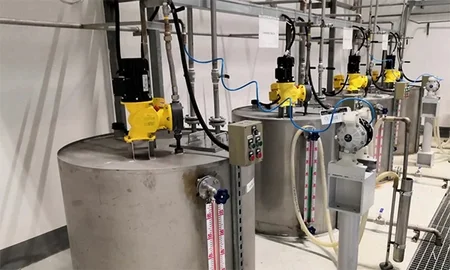

Phosphate Replenishment System

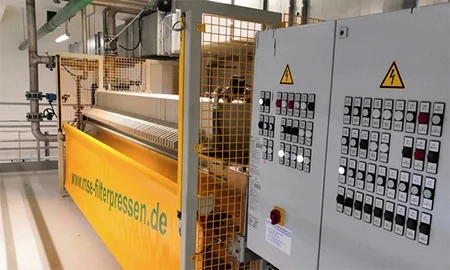

Plate-and-Frame Filter Press Equipment

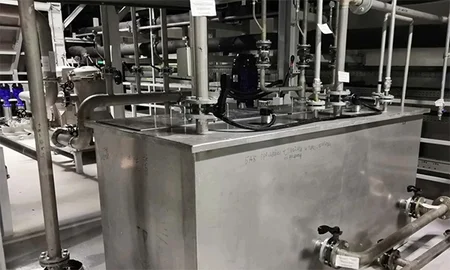

Nitric Acid Cleaning System

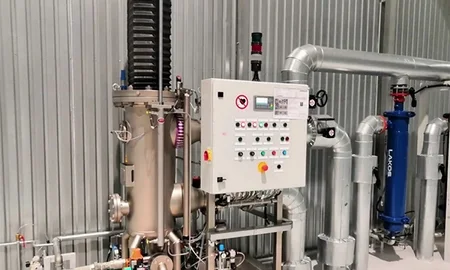

Magnetic Filtration System

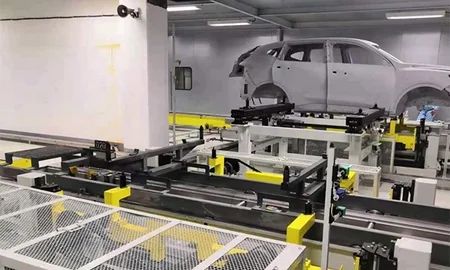

Downstream Dust Protection, Elevators, Preheating Zone, Insulation Zone, and Forced Cooling Chamber

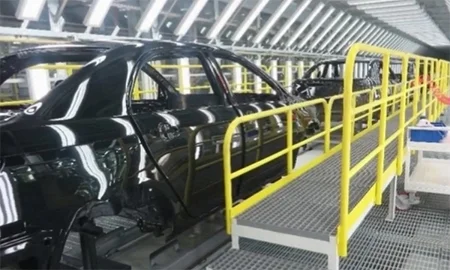

Topcoat Inspection of Painted Vehicles
Electrical Control Equipment for the Complete Vehicle Coating System

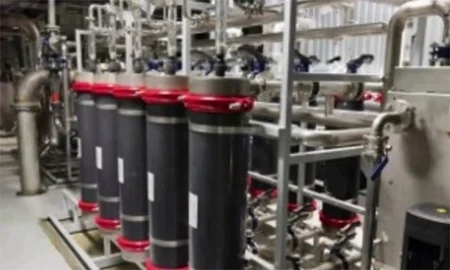

Ultrafiltration Module
